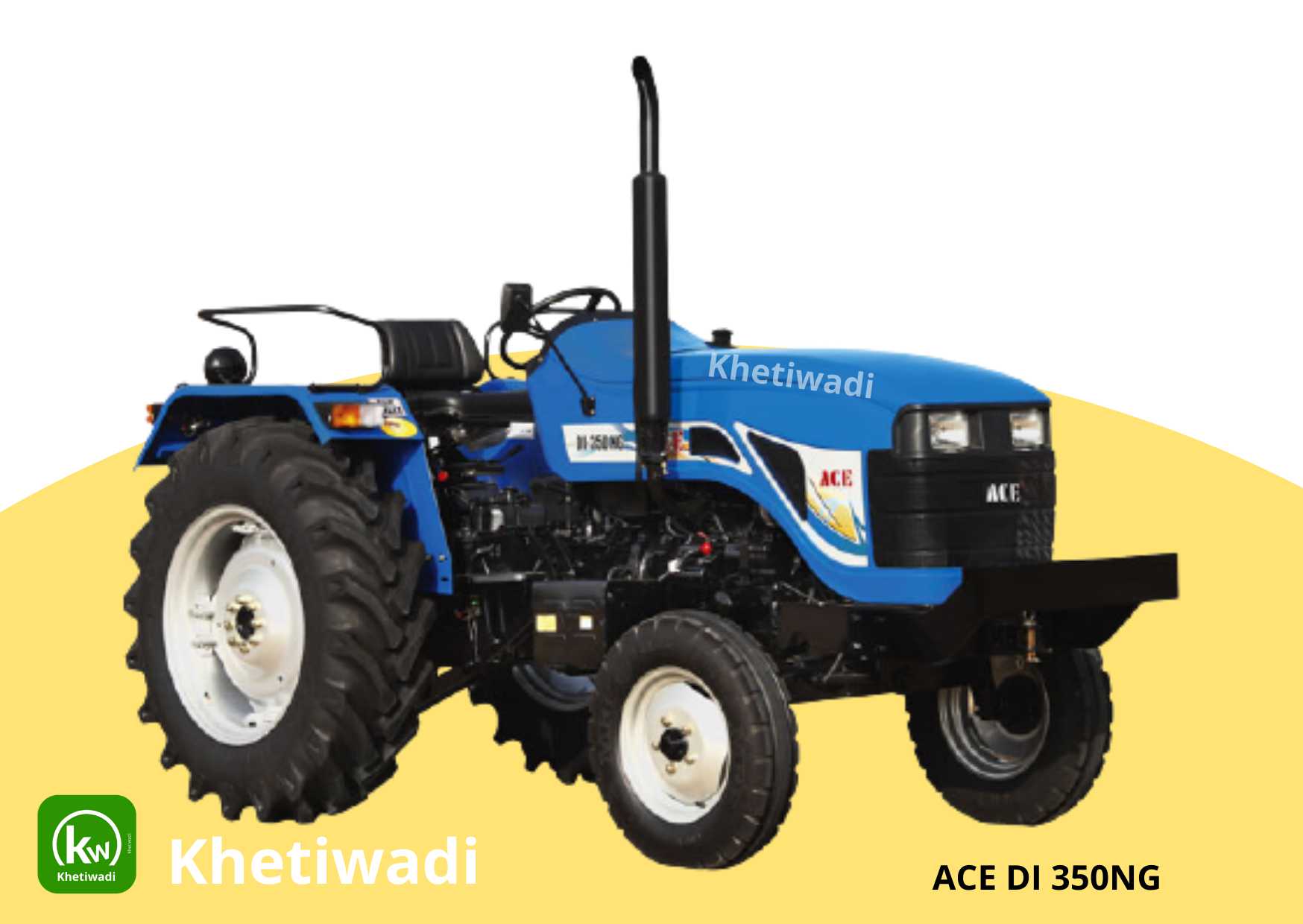

ACE DI-350NG – Specifications
| Engine | |
|---|---|
| Horsepower (HP) | 40 HP |
| Engine Capacity (cc) | 2858 cc |
| Engine RPM | 1800 RPM |
| Cylinder | 3 |
| Air Filter | Dry type |
| Cooling Type | Water Cooled |
| Transmission | |
|---|---|
| Clutch Type | Single / Dual |
Page is loading…
Please wait
Page is loading…
Please wait
| Engine | |
|---|---|
| Horsepower (HP) | 40 HP |
| Engine Capacity (cc) | 2858 cc |
| Engine RPM | 1800 RPM |
| Cylinder | 3 |
| Air Filter | Dry type |
| Cooling Type | Water Cooled |
| Transmission | |
|---|---|
| Clutch Type | Single / Dual |
| Transmission Type | Constant Mesh |
|---|
| Forward Speed | 2.37 – 28.72 kmph |
|---|
| Reverse Speed | 2.96 – 11.69 kmph |
|---|
| Forward Gears | 8 |
|---|
| Reverse Gears | 2 |
|---|
| Brakes | |
|---|---|
| Brake Type | Dry / Oil Immersed |
| Turning Radius (Brake) | 3020 mm |
| Steering | |
|---|---|
| Steering Type | Power / Mechanical Steering |
| Steering Adjustment | NO |
| PTO Power | |
|---|---|
| PTO Type | 6 Spline / 21 Spline |
| PTO RPM | 540 / 1000 |
| PTO Power (HP) | 34 HP |
| Fuel Tank | |
|---|---|
| Fuel Tank Capacity (L) | 55 liters |
| Dimension & Weight | |
|---|---|
| Weight | 1930 kg |
| Wheelbase | 1960 mm |
| Overall Length | 3660 mm |
| Hydraulics | |
|---|---|
| Lift Capacity | 1200 kg |
| Tyre Size | |
|---|---|
| Front Tyres | 6 X 16 |
| Rear Tyres | 13.6 X 28 |
| Drive & Warranty | |
|---|---|
| Drive Type | 2WD |
| Warranty | 2000 Hours / 2 year |
