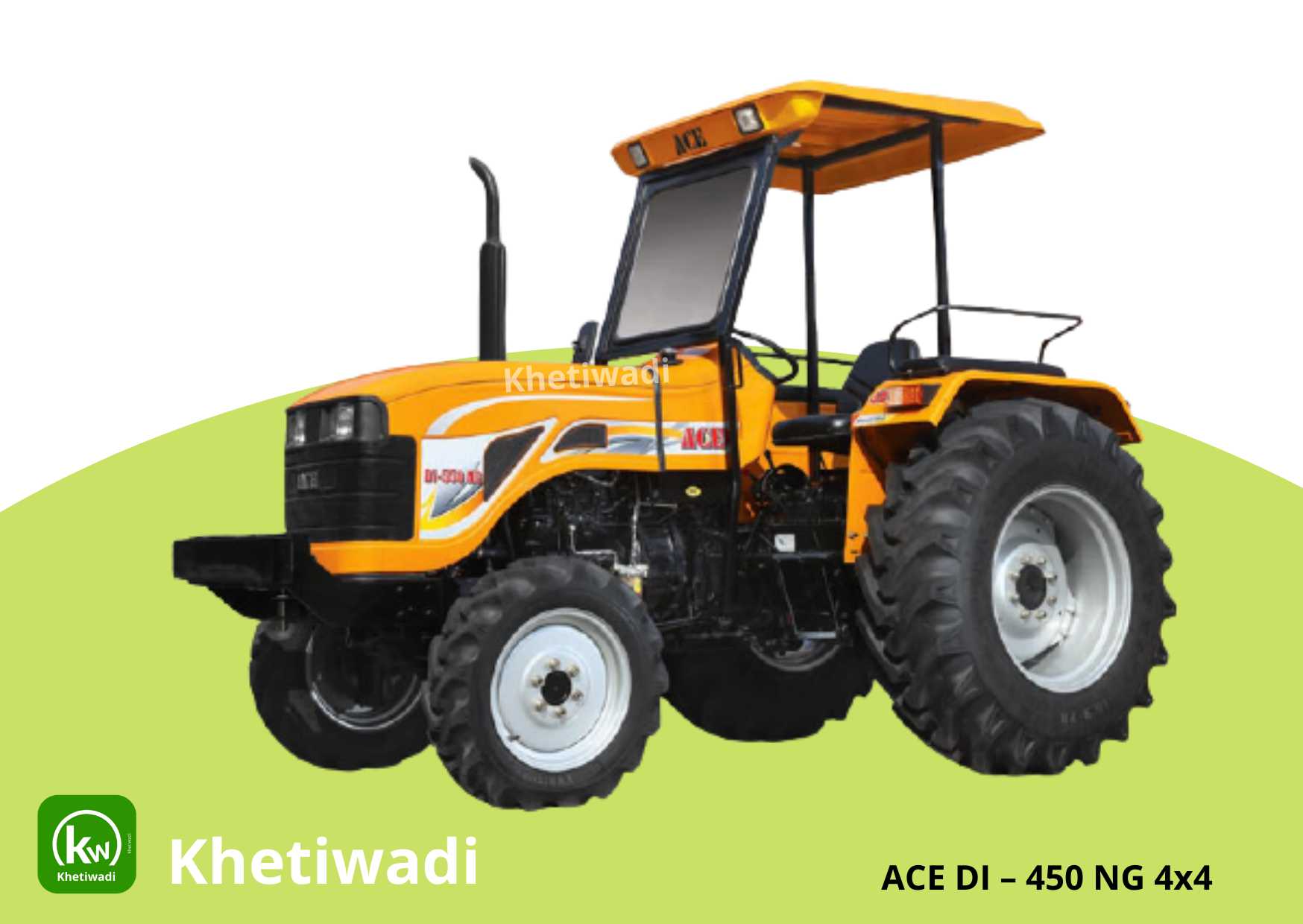

ACE DI – 450 NG 4x4 – Specifications
| Engine | |
|---|---|
| Horsepower (HP) | 45 HP |
| Engine Capacity (cc) | 2858 cc |
| Engine RPM | 2000 RPM |
| Cylinder | 3 |
| Air Filter | Dry type |
| Cooling Type | Water Cooled |
| Transmission | |
|---|---|
| Clutch Type | Dual |
| Engine | |
|---|---|
| Horsepower (HP) | 45 HP |
| Engine Capacity (cc) | 2858 cc |
| Engine RPM | 2000 RPM |
| Cylinder | 3 |
| Air Filter | Dry type |
| Cooling Type | Water Cooled |
| Transmission | |
|---|---|
| Clutch Type | Dual |
| Transmission Type |
|---|
| Constant Mesh |
| Forward Speed | 2.51 – 31.91 kmph |
|---|
| Reverse Speed | 3.51 – 13.87 kmph |
|---|
| Forward Gears | 8 |
|---|
| Reverse Gears | 2 |
|---|
| Brakes | |
|---|---|
| Brake Type | Oil Immersed |
| Turning Radius (Brake) | 4300 mm |
| Steering | |
|---|---|
| Steering Type | Power / Mechanical Steering |
| Steering Adjustment | NO |
| PTO Power | |
|---|---|
| PTO Type | 6 Spline |
| PTO RPM | 540 |
| PTO Power (HP) | 38 HP |
| Fuel Tank | |
|---|---|
| Fuel Tank Capacity (L) | 57 liters |
| Dimension & Weight | |
|---|---|
| Weight | 2170 kg |
| Wheelbase | NA |
| Overall Length | 3740 mm |
| Hydraulics | |
|---|---|
| Lift Capacity | 1200 kg |
| Tyre Size | |
|---|---|
| Front Tyres | 8 X 18 |
| Rear Tyres | 13.6 X 28 |
| Drive & Warranty | |
|---|---|
| Drive Type | 4WD |
| Warranty | 2000 Hours / 2 year |
