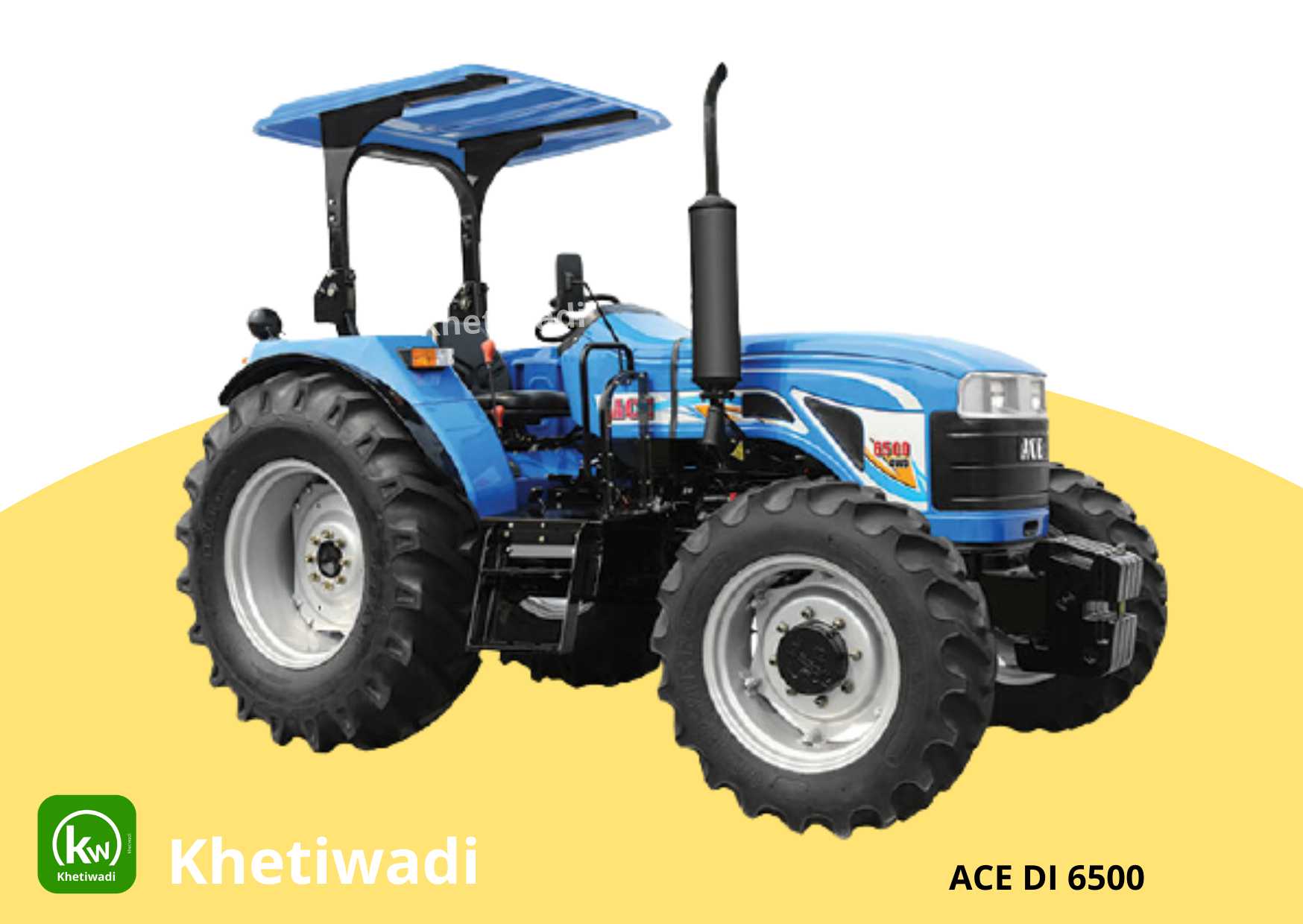

ACE DI 6500 – Specifications
| Engine | |
|---|---|
| Horsepower (HP) | 61 HP |
| Engine Capacity (cc) | 4088 cc |
| Engine RPM | 2200 RPM |
| Cylinder | 4 |
| Air Filter | Dry type with Clog Indicator |
| Cooling Type | NA |
| Transmission | |
|---|---|
| Clutch Type | Dual |
Page is loading…
Please wait
Page is loading…
Please wait
| Engine | |
|---|---|
| Horsepower (HP) | 61 HP |
| Engine Capacity (cc) | 4088 cc |
| Engine RPM | 2200 RPM |
| Cylinder | 4 |
| Air Filter | Dry type with Clog Indicator |
| Cooling Type | NA |
| Transmission | |
|---|---|
| Clutch Type | Dual |
| Transmission Type | Synchromesh |
|---|
| Forward Speed | 1.5 - 30.85 kmph |
|---|
| Reverse Speed | 1.5 - 30.85 kmph |
|---|
| Forward Gears | 12 |
|---|
| Reverse Gears | 12 |
|---|
| Brakes | |
|---|---|
| Brake Type | Oil Immersed Disc Brakes |
| Turning Radius (Brake) | NA |
| Steering | |
|---|---|
| Steering Type | Power Steering |
| Steering Adjustment | NO |
| PTO Power | |
|---|---|
| PTO Type | 6 Spline |
| PTO RPM | 540, 540E |
| PTO Power (HP) | 52 HP |
| Fuel Tank | |
|---|---|
| Fuel Tank Capacity (L) | 65 liters |
| Dimension & Weight | |
|---|---|
| Weight | 2600 kg |
| Wheelbase | 2135 mm |
| Overall Length | 3990 mm |
| Hydraulics | |
|---|---|
| Lift Capacity | 2200 kg |
| Tyre Size | |
|---|---|
| Front Tyres | 7.5 X 16 / 9.5 X 24 |
| Rear Tyres | 16.9 X 28 |
| Drive & Warranty | |
|---|---|
| Drive Type | 2WD / 4WD |
| Warranty | NA |
