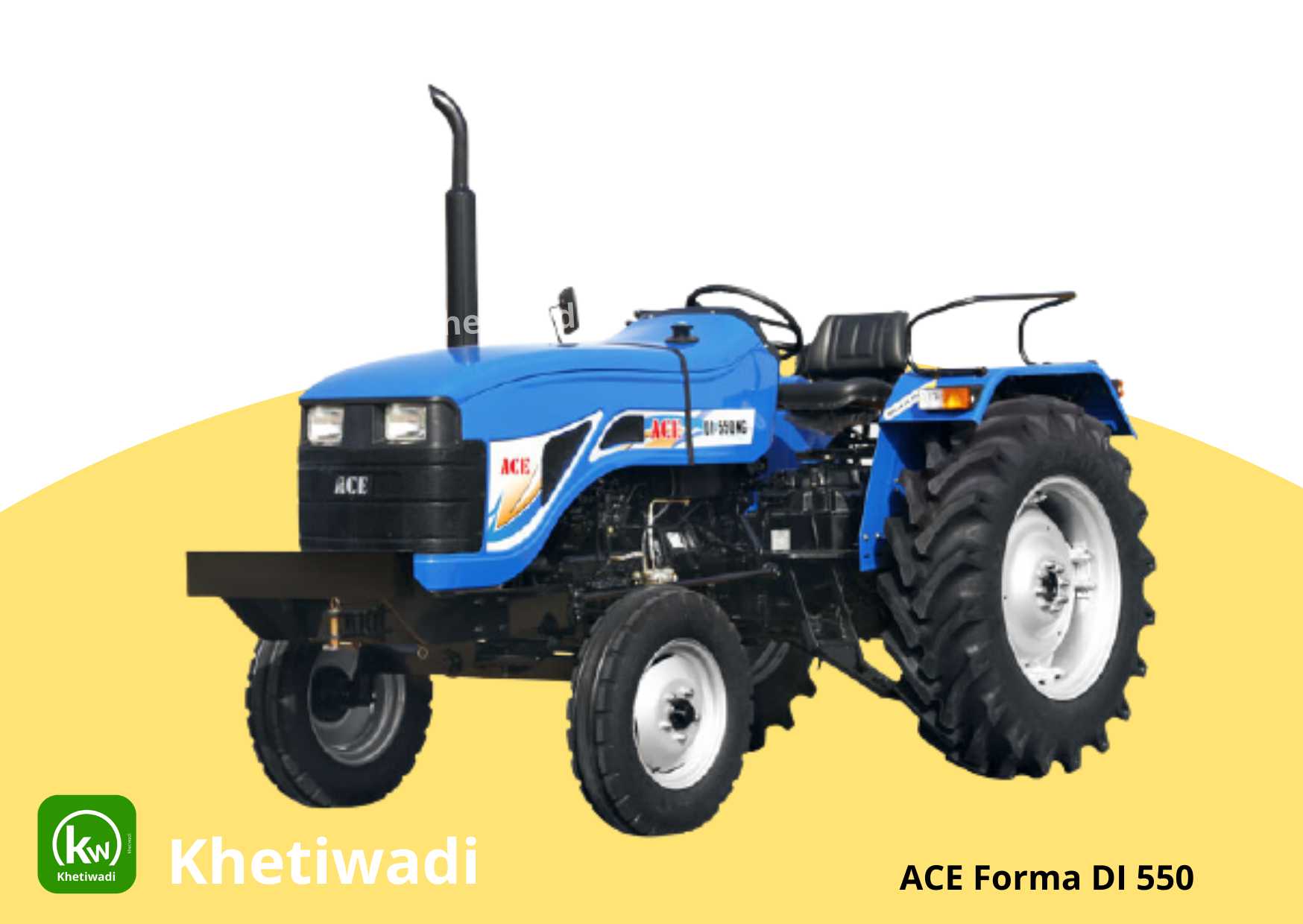

ACE Forma DI 550 – Specifications
| Engine | |
|---|---|
| Horsepower (HP) | 50 HP |
| Engine Capacity (cc) | 3120 cc |
| Engine RPM | 2200 RPM |
| Cylinder | 3 |
| Air Filter | Dry type |
| Cooling Type | Water Cooled |
| Transmission | |
|---|---|
| Clutch Type | Dual |
| Engine | |
|---|---|
| Horsepower (HP) | 50 HP |
| Engine Capacity (cc) | 3120 cc |
| Engine RPM | 2200 RPM |
| Cylinder | 3 |
| Air Filter | Dry type |
| Cooling Type | Water Cooled |
| Transmission | |
|---|---|
| Clutch Type | Dual |
| Transmission Type |
|---|
| Constant Mesh |
| Forward Speed | 2.6 – 34 kmph |
|---|
| Reverse Speed | 3.6 – 14.3 kmph |
|---|
| Forward Gears | 8 |
|---|
| Reverse Gears | 2 |
|---|
| Brakes | |
|---|---|
| Brake Type | Dry / Oil Immersed |
| Turning Radius (Brake) | 3450 mm |
| Steering | |
|---|---|
| Steering Type | Power / Mechanical Steering |
| Steering Adjustment | NO |
| PTO Power | |
|---|---|
| PTO Type | 6 Spline |
| PTO RPM | 540 |
| PTO Power (HP) | 43 HP |
| Fuel Tank | |
|---|---|
| Fuel Tank Capacity (L) | 55 liters |
| Dimension & Weight | |
|---|---|
| Weight | 2145 kg |
| Wheelbase | 2140 mm |
| Overall Length | 3800 mm |
| Hydraulics | |
|---|---|
| Lift Capacity | 1800 kg |
| Tyre Size | |
|---|---|
| Front Tyres | 7.5 X 16 |
| Rear Tyres | 13.6 X 28 / 14.9 X 28 |
| Drive & Warranty | |
|---|---|
| Drive Type | 2WD |
| Warranty | NA |
