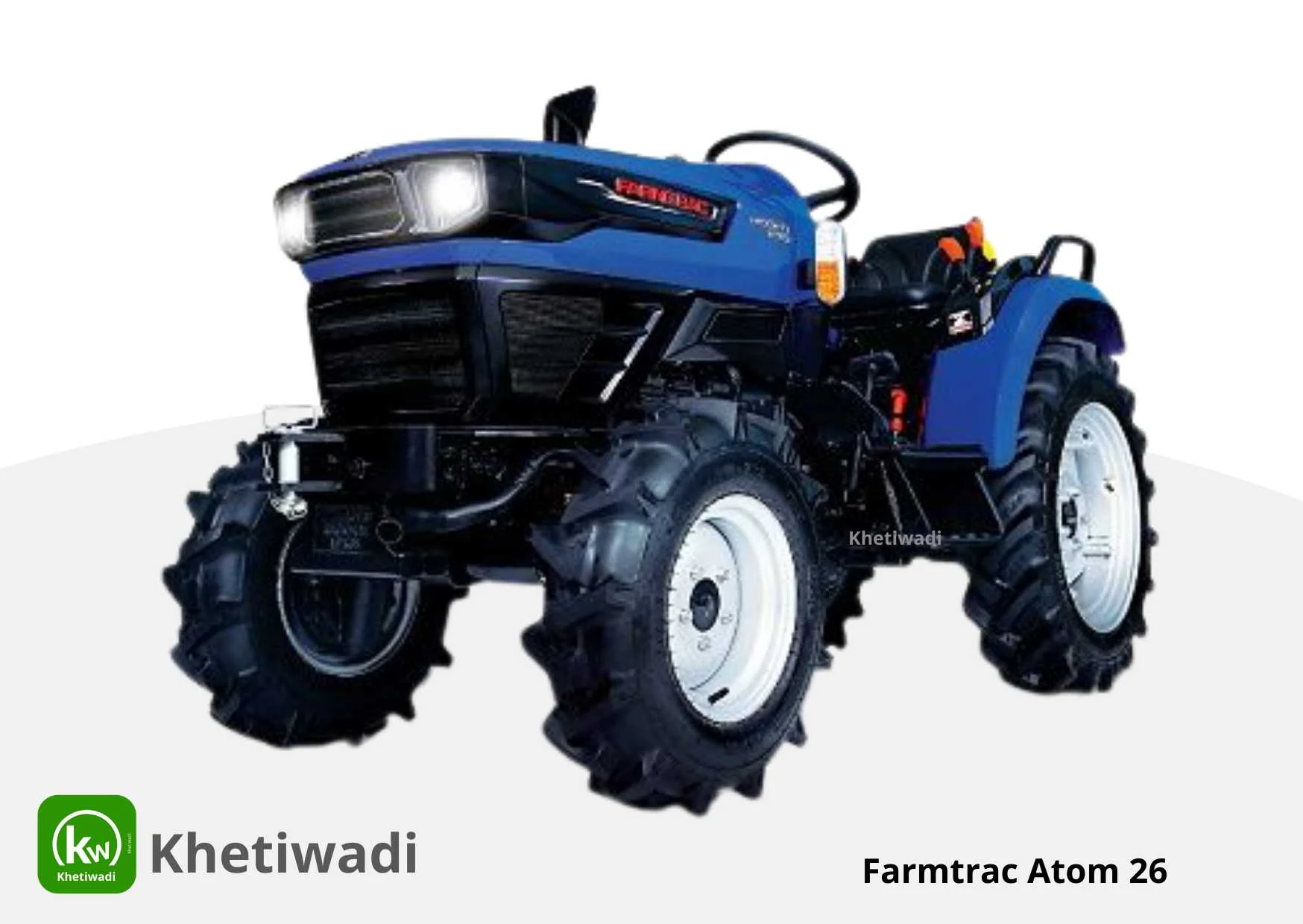

Farmtrac Atom 26 – Specifications
| Engine | |
|---|---|
| Horsepower (HP) | 26 HP |
| Engine Capacity (cc) | NA |
| Engine RPM | 2700 RPM |
| Cylinder | 3 |
| Air Filter | Dry type |
| Cooling Type | Coolant Cooled |
| Transmission | |
|---|---|
| Clutch Type | Single Friction Plate |
| Engine | |
|---|---|
| Horsepower (HP) | 26 HP |
| Engine Capacity (cc) | NA |
| Engine RPM | 2700 RPM |
| Cylinder | 3 |
| Air Filter | Dry type |
| Cooling Type | Coolant Cooled |
| Transmission | |
|---|---|
| Clutch Type | Single Friction Plate |
| Transmission Type | Constant mesh |
|---|
| Forward Speed | 1.5 - 22.5 kmph |
|---|
| Reverse Speed | 1.8 - 11.2 kmph |
|---|
| Forward Gears | 9 |
|---|
| Reverse Gears | 3 |
|---|
| Brakes | |
|---|---|
| Brake Type | Multi Plate Oil Immersed Brakes |
| Turning Radius (Brake) | 1900 mm |
| Steering | |
|---|---|
| Steering Type | Balanced Power Steering |
| Steering Adjustment | NO |
| PTO Power | |
|---|---|
| PTO Type | 6 Spline |
| PTO RPM | 540, 540E |
| PTO Power (HP) | 20 HP |
| Fuel Tank | |
|---|---|
| Fuel Tank Capacity (L) | 24 liters |
| Dimension & Weight | |
|---|---|
| Weight | 900 kg |
| Wheelbase | 1550 mm |
| Overall Length | 2730 mm |
| Hydraulics | |
|---|---|
| Lift Capacity | 750 kg |
| Tyre Size | |
|---|---|
| Front Tyres | 6 X 12 |
| Rear Tyres | 8.3 X 20 |
| Drive & Warranty | |
|---|---|
| Drive Type | 4WD |
| Warranty | 3000 hr /3 year |
