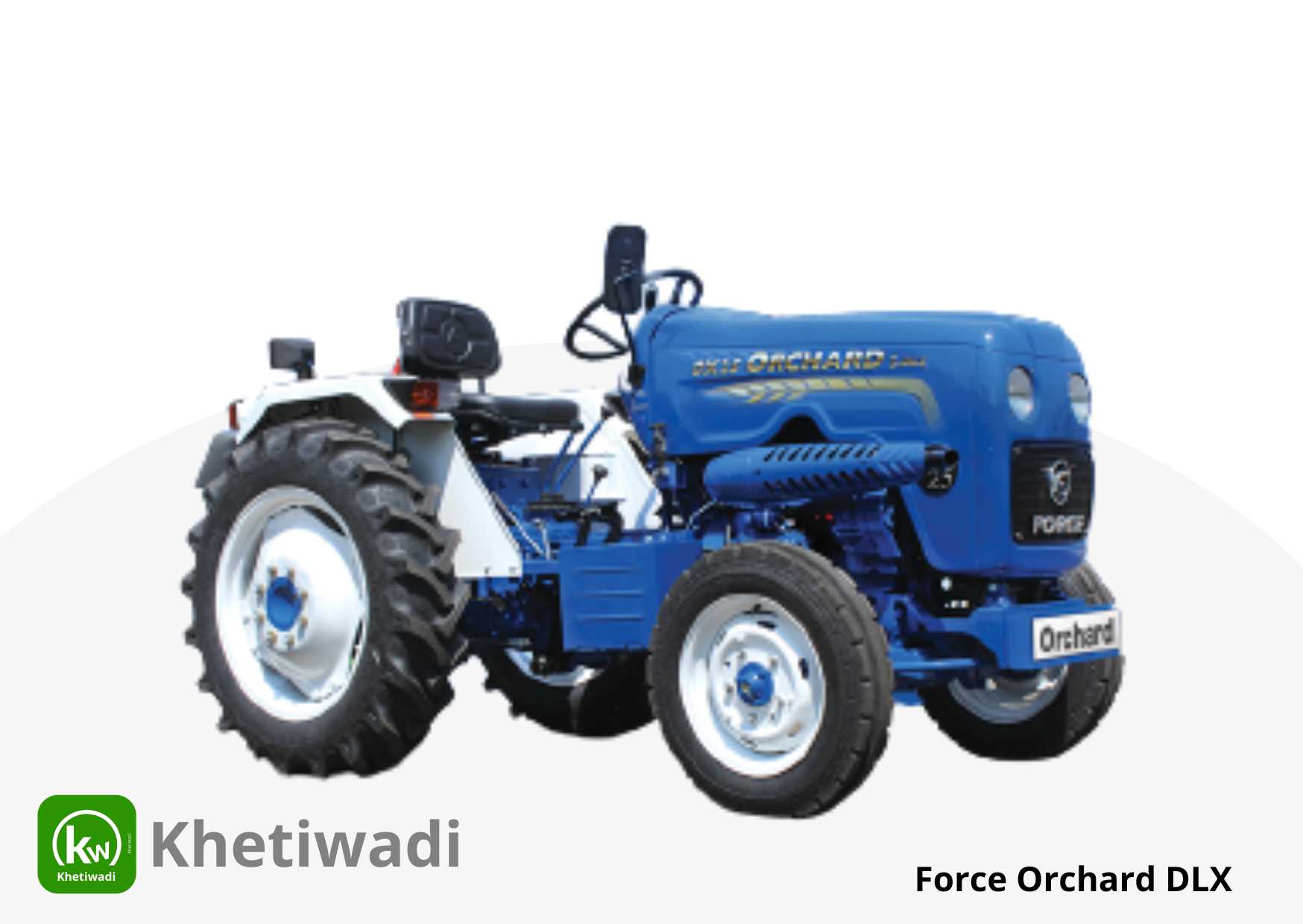

Force Orchard DLX – Specifications
| Engine | |
|---|---|
| Horsepower (HP) | 27 HP |
| Engine Capacity (cc) | 1947 cc |
| Engine RPM | 2200 RPM |
| Cylinder | 3 |
| Air Filter | Dry type |
| Cooling Type | Water Cooled |
| Transmission | |
|---|---|
| Clutch Type | Dual Clutch |
Page is loading…
Please wait
Page is loading…
Please wait
| Engine | |
|---|---|
| Horsepower (HP) | 27 HP |
| Engine Capacity (cc) | 1947 cc |
| Engine RPM | 2200 RPM |
| Cylinder | 3 |
| Air Filter | Dry type |
| Cooling Type | Water Cooled |
| Transmission | |
|---|---|
| Clutch Type | Dual Clutch |
| Transmission Type | Constant Mesh |
|---|
| Forward Speed | NA |
|---|
| Reverse Speed | NA |
|---|
| Forward Gears | 8 |
|---|
| Reverse Gears | 4 |
|---|
| Brakes | |
|---|---|
| Brake Type | Fully Oil Immersed Multiplate sealed disc brakes |
| Turning Radius (Brake) | 2500 mm |
| Steering | |
|---|---|
| Steering Type | Power / Mechanical Steering |
| Steering Adjustment | NO |
| PTO Power | |
|---|---|
| PTO Type | 6 Spline |
| PTO RPM | 540, 1000 |
| PTO Power (HP) | NA |
| Fuel Tank | |
|---|---|
| Fuel Tank Capacity (L) | 29 liters |
| Dimension & Weight | |
|---|---|
| Weight | 1460 kg |
| Wheelbase | 1585 mm |
| Overall Length | 2975 mm |
| Hydraulics | |
|---|---|
| Lift Capacity | 1000 kg |
| Tyre Size | |
|---|---|
| Front Tyres | 5 X 15 |
| Rear Tyres | 9.5 X 24 |
| Drive & Warranty | |
|---|---|
| Drive Type | 2WD |
| Warranty | NA |
