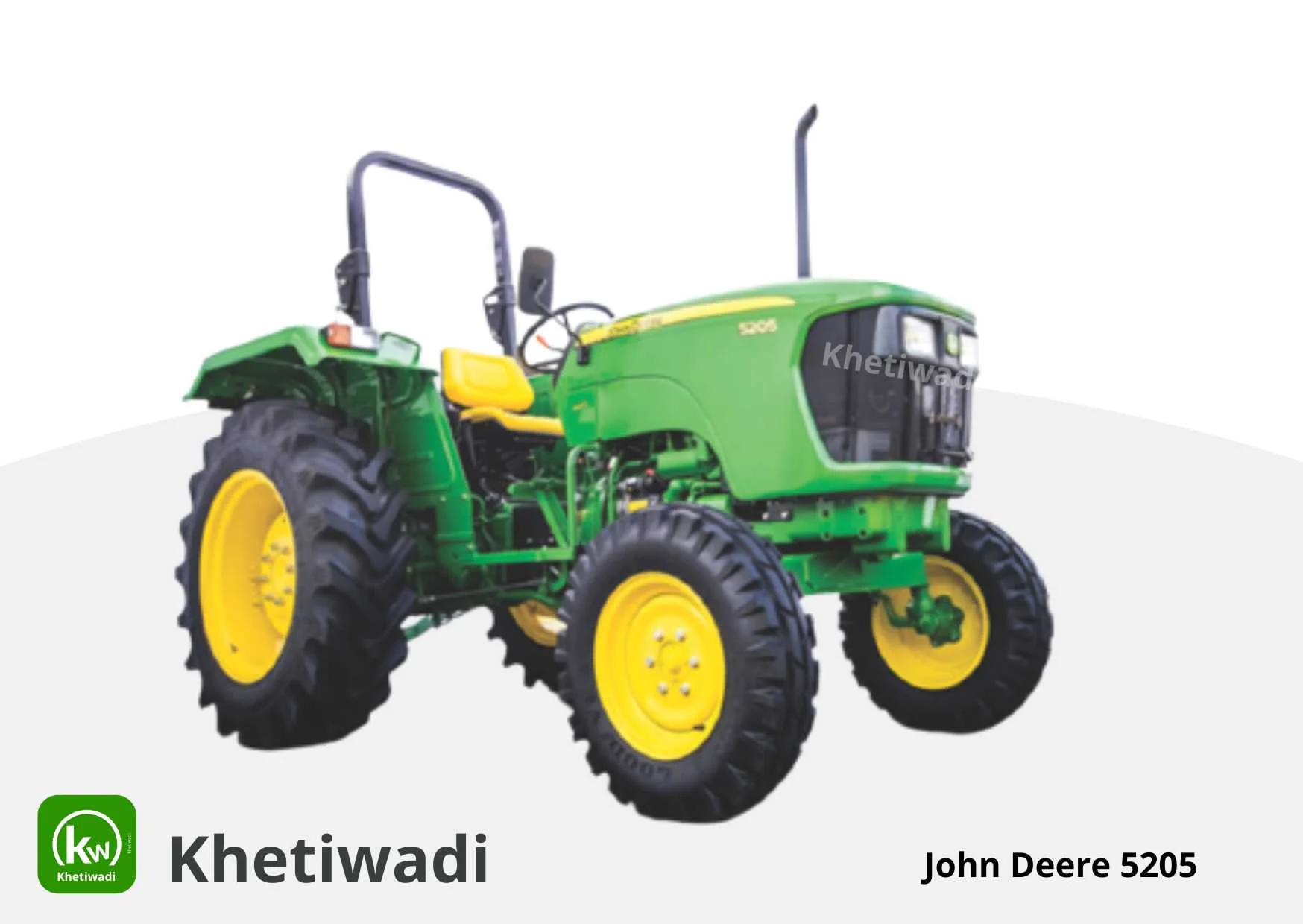

John Deere 5205 – Specifications
| Engine | |
|---|---|
| Horsepower (HP) | 48 HP |
| Engine Capacity (cc) | 2900 cc |
| Engine RPM | 2100 RPM |
| Cylinder | 3 |
| Air Filter | Dry type, Dual element |
| Cooling Type | Coolant Cooled with overflow reservoir |
| Transmission | |
|---|---|
| Clutch Type | Single / Dual |
| Engine | |
|---|---|
| Horsepower (HP) | 48 HP |
| Engine Capacity (cc) | 2900 cc |
| Engine RPM | 2100 RPM |
| Cylinder | 3 |
| Air Filter | Dry type, Dual element |
| Cooling Type | Coolant Cooled with overflow reservoir |
| Transmission | |
|---|---|
| Clutch Type | Single / Dual |
| Transmission Type | Collarshift |
|---|
| Forward Speed | 2.96 – 32.39 kmph |
|---|
| Reverse Speed | 3.89 – 14.9 kmph |
|---|
| Forward Gears | 8 |
|---|
| Reverse Gears | 4 |
|---|
| Brakes | |
|---|---|
| Brake Type | Oil Immersed |
| Turning Radius (Brake) | 2900 mm |
| Steering | |
|---|---|
| Steering Type | Power Steering |
| Steering Adjustment | NO |
| PTO Power | |
|---|---|
| PTO Type | 6 Spline |
| PTO RPM | 540, 540E |
| PTO Power (HP) | 41 HP |
| Fuel Tank | |
|---|---|
| Fuel Tank Capacity (L) | 60 liters |
| Dimension & Weight | |
|---|---|
| Weight | 1870 kg |
| Wheelbase | 1950 mm |
| Overall Length | 3355 mm |
| Hydraulics | |
|---|---|
| Lift Capacity | 1600 kg |
| Tyre Size | |
|---|---|
| Front Tyres | 7.5 X 16 |
| Rear Tyres | 14.9 X 28 |
| Drive & Warranty | |
|---|---|
| Drive Type | 2WD / 4WD |
| Warranty | 5000 Hours / 5 year |
