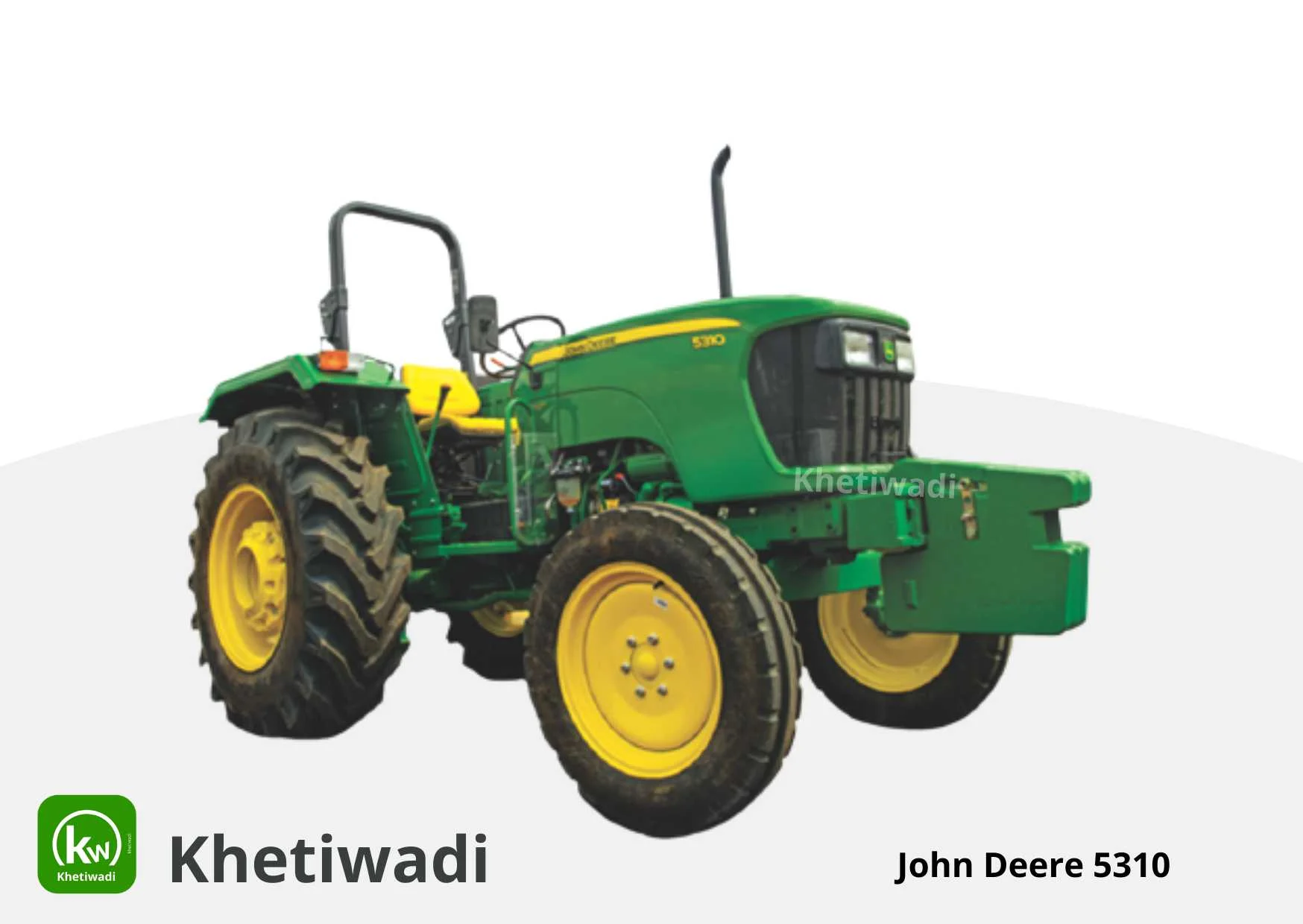

John Deere 5310 – Specifications
| Engine | |
|---|---|
| Horsepower (HP) | 55 HP |
| Engine Capacity (cc) | 2900 cc |
| Engine RPM | 2400 RPM |
| Cylinder | 3 |
| Air Filter | Dry type, Dual element |
| Cooling Type | Coolant Cooled |
| Transmission | |
|---|---|
| Clutch Type | Dual |
Page is loading…
Please wait
Page is loading…
Please wait
| Engine | |
|---|---|
| Horsepower (HP) | 55 HP |
| Engine Capacity (cc) | 2900 cc |
| Engine RPM | 2400 RPM |
| Cylinder | 3 |
| Air Filter | Dry type, Dual element |
| Cooling Type | Coolant Cooled |
| Transmission | |
|---|---|
| Clutch Type | Dual |
| Transmission Type | Collarshift |
|---|
| Forward Speed | 2.6 – 31.9 kmph |
|---|
| Reverse Speed | 3.8 – 24.5 kmph |
|---|
| Forward Gears | 9 |
|---|
| Reverse Gears | 3 |
|---|
| Brakes | |
|---|---|
| Brake Type | Oil Immersed |
| Turning Radius (Brake) | 3150 mm |
| Steering | |
|---|---|
| Steering Type | Power Steering |
| Steering Adjustment | NO |
| PTO Power | |
|---|---|
| PTO Type | 6 Spline |
| PTO RPM | 540 |
| PTO Power (HP) | 47 HP |
| Fuel Tank | |
|---|---|
| Fuel Tank Capacity (L) | 68 liters |
| Dimension & Weight | |
|---|---|
| Weight | 2110 kg |
| Wheelbase | 2050 mm |
| Overall Length | 3535 mm |
| Hydraulics | |
|---|---|
| Lift Capacity | 2000 kg |
| Tyre Size | |
|---|---|
| Front Tyres | 6.5 X 20 |
| Rear Tyres | 16.9 X 28 / 13.6 X 28 |
| Drive & Warranty | |
|---|---|
| Drive Type | 2WD / 4WD |
| Warranty | 5000 Hours / 5 year |
