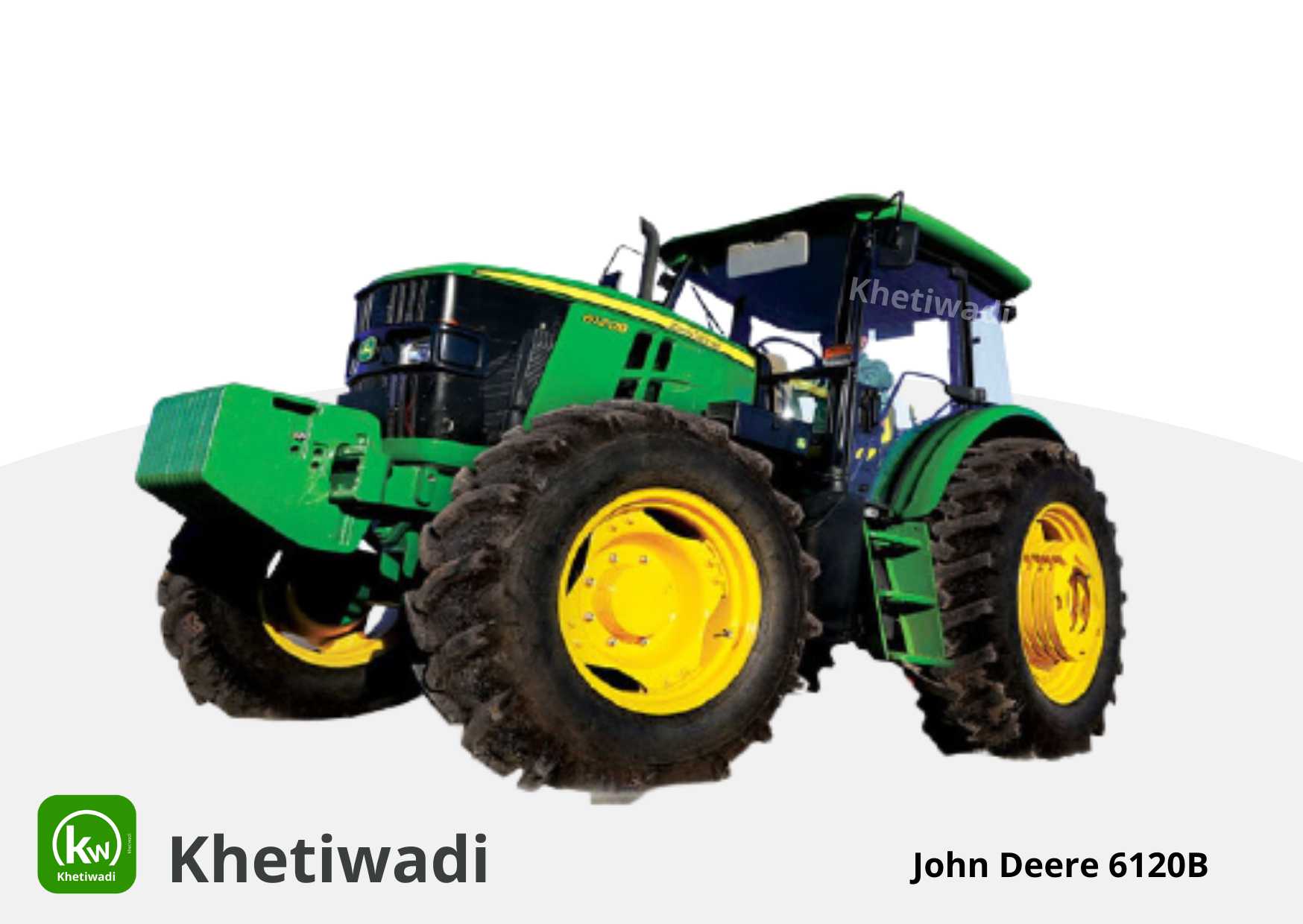

John Deere 6120B – Specifications
| Engine | |
|---|---|
| Horsepower (HP) | 120 HP |
| Engine Capacity (cc) | 4000 cc |
| Engine RPM | 2400 RPM |
| Cylinder | 4 |
| Air Filter | Dual element with add-on pre-cleaner |
| Cooling Type | Liquid Cooled |
| Transmission | |
|---|---|
| Clutch Type | Dual |
| Engine | |
|---|---|
| Horsepower (HP) | 120 HP |
| Engine Capacity (cc) | 4000 cc |
| Engine RPM | 2400 RPM |
| Cylinder | 4 |
| Air Filter | Dual element with add-on pre-cleaner |
| Cooling Type | Liquid Cooled |
| Transmission | |
|---|---|
| Clutch Type | Dual |
| Transmission Type | Synchromesh |
|---|
| Forward Speed | 3.1 – 30.9 kmph |
|---|
| Reverse Speed | 6.0 – 31.9 kmph |
|---|
| Forward Gears | 12 |
|---|
| Reverse Gears | 4 |
|---|
| Brakes | |
|---|---|
| Brake Type | Oil Immersed |
| Turning Radius (Brake) | 3604 mm |
| Steering | |
|---|---|
| Steering Type | Power Steering |
| Steering Adjustment | YES |
| PTO Power | |
|---|---|
| PTO Type | 6 Spline / 21 Spline |
| PTO RPM | 540, 1000 |
| PTO Power (HP) | 102 HP |
| Fuel Tank | |
|---|---|
| Fuel Tank Capacity (L) | 220 litres |
| Dimension & Weight | |
|---|---|
| Weight | 4500 kg |
| Wheelbase | 2560 mm |
| Overall Length | 4410 mm |
| Hydraulics | |
|---|---|
| Lift Capacity | 3650 kg |
| Tyre Size | |
|---|---|
| Front Tyres | 14.9 X 24 |
| Rear Tyres | 18.4 X 38 |
| Drive & Warranty | |
|---|---|
| Drive Type | 4WD |
| Warranty | 5000 Hours / 5 year |
