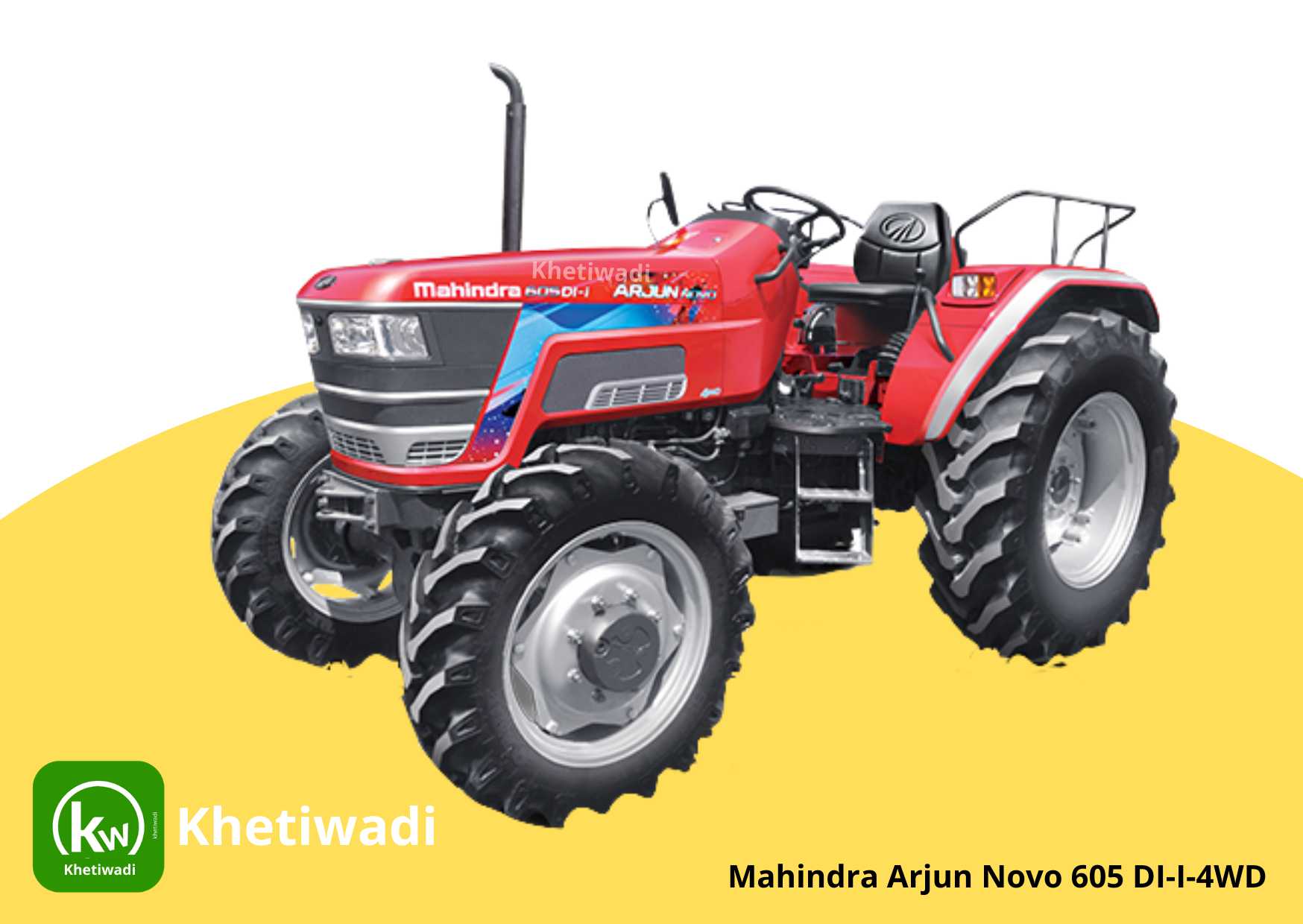

Mahindra Arjun Novo 605 DI-I-4WD – Specifications
| Engine | |
|---|---|
| Horsepower (HP) | 57 HP |
| Engine Capacity (cc) | 3531 cc |
| Engine RPM | 2100 RPM |
| Cylinder | 4 |
| Air Filter | Dry type with clog indicator |
| Cooling Type | Forced circulation coolant |
| Transmission | |
|---|---|
| Clutch Type |
| Engine | |
|---|---|
| Horsepower (HP) | 57 HP |
| Engine Capacity (cc) | 3531 cc |
| Engine RPM | 2100 RPM |
| Cylinder | 4 |
| Air Filter | Dry type with clog indicator |
| Cooling Type | Forced circulation coolant |
| Transmission | |
|---|---|
| Clutch Type |
| Dual diaphragm type |
| Transmission Type | Synchromesh |
|---|
| Forward Speed | 1.71 – 33.5 kmph |
|---|
| Reverse Speed | 1.69 – 33.23 kmph |
|---|
| Forward Gears | 15 |
|---|
| Reverse Gears | 15 |
|---|
| Brakes | |
|---|---|
| Brake Type | Dry / Oil Immersed |
| Turning Radius (Brake) | NA |
| Steering | |
|---|---|
| Steering Type | Mechanical / Power Steering |
| Steering Adjustment | NO |
| PTO Power | |
|---|---|
| PTO Type | 6 Spline |
| PTO RPM | 540, Reverse, 540E |
| PTO Power (HP) | 50 HP |
| Fuel Tank | |
|---|---|
| Fuel Tank Capacity (L) | 66 liters |
| Dimension & Weight | |
|---|---|
| Weight | NA |
| Wheelbase | 2145 mm |
| Overall Length | 3660 mm |
| Hydraulics | |
|---|---|
| Lift Capacity | 2200 kg |
| Tyre Size | |
|---|---|
| Front Tyres | 9.5 X 24 |
| Rear Tyres | 16.9 X 28 |
| Drive & Warranty | |
|---|---|
| Drive Type | 4WD |
| Warranty | 2000 Hours / 2 year |
