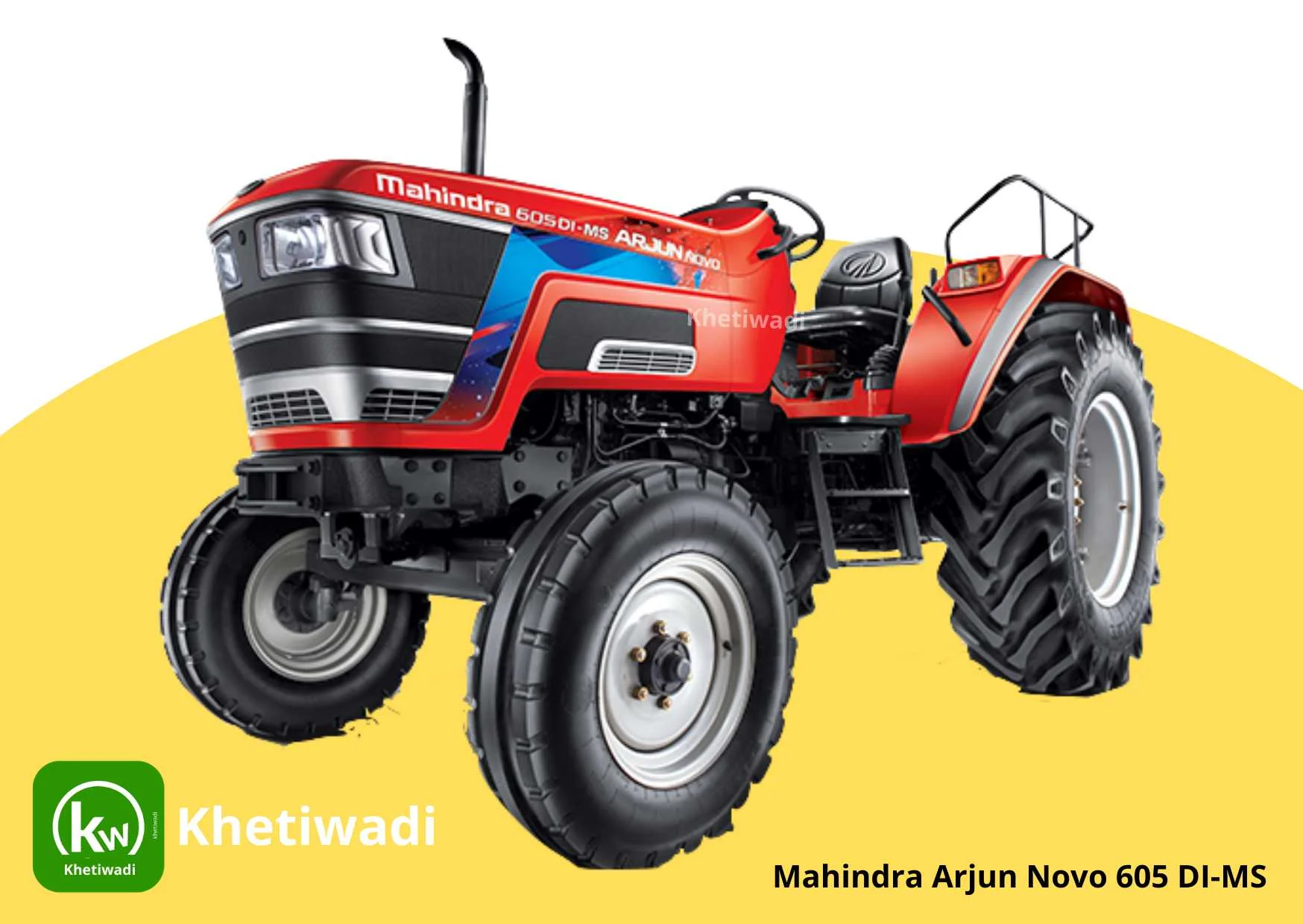

Mahindra Arjun Novo 605 DI-MS – Specifications
| Engine | |
|---|---|
| Horsepower (HP) | 49 HP |
| Engine Capacity (cc) | 3192 cc |
| Engine RPM | 2100 RPM |
| Cylinder | 4 |
| Air Filter | Dry type with clog indicator |
| Cooling Type | Forced circulation of coolant |
| Transmission | |
|---|---|
| Clutch Type |
| Engine | |
|---|---|
| Horsepower (HP) | 49 HP |
| Engine Capacity (cc) | 3192 cc |
| Engine RPM | 2100 RPM |
| Cylinder | 4 |
| Air Filter | Dry type with clog indicator |
| Cooling Type | Forced circulation of coolant |
| Transmission | |
|---|---|
| Clutch Type |
| Dual |
| Transmission Type | Synchromesh |
|---|
| Forward Speed | 1.63 – 32.04 kmph |
|---|
| Reverse Speed | 3.09 – 17.23 kmph |
|---|
| Forward Gears | 15 |
|---|
| Reverse Gears | 3 |
|---|
| Brakes | |
|---|---|
| Brake Type | Oil Immersed |
| Turning Radius (Brake) | NA |
| Steering | |
|---|---|
| Steering Type | Power Steering |
| Steering Adjustment | NO |
| PTO Power | |
|---|---|
| PTO Type | 6 Spline |
| PTO RPM | 540, 540E, 540R |
| PTO Power (HP) | 44 HP |
| Fuel Tank | |
|---|---|
| Fuel Tank Capacity (L) | 60 liters |
| Dimension & Weight | |
|---|---|
| Weight | NA |
| Wheelbase | 2145 mm |
| Overall Length | 3660 mm |
| Hydraulics | |
|---|---|
| Lift Capacity | 1800 kg |
| Tyre Size | |
|---|---|
| Front Tyres | 7.5 X 16 |
| Rear Tyres | 14.9 X 28 |
| Drive & Warranty | |
|---|---|
| Drive Type | 2WD |
| Warranty | 2000 Hours / 2 year |
