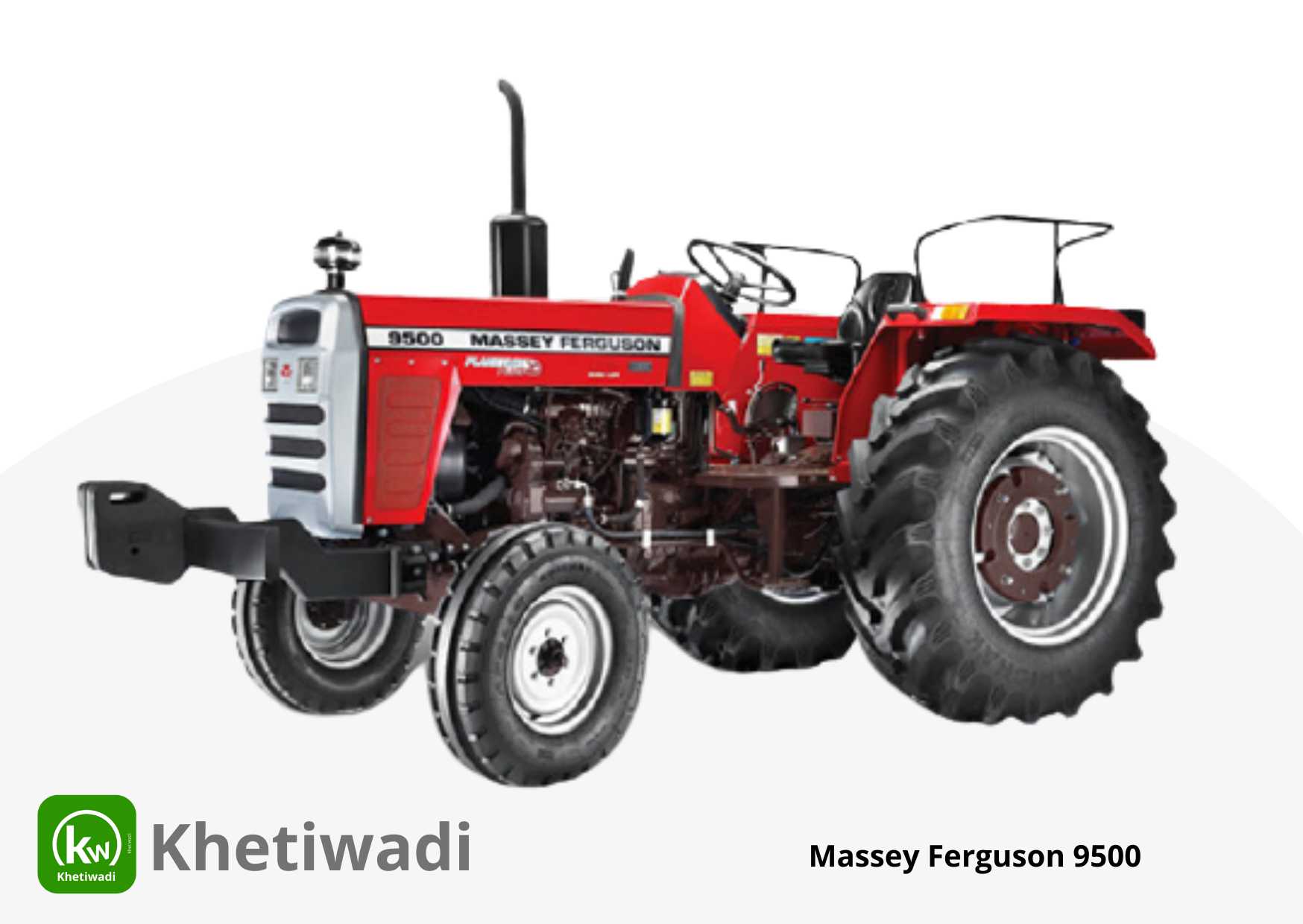

Massey Ferguson 9500 – Specifications
| Engine | |
|---|---|
| Horsepower (HP) | 58 HP |
| Engine Capacity (cc) | 2700 cc |
| Engine RPM | 1790 RPM |
| Cylinder | 3 |
| Air Filter | Dry type |
| Cooling Type | Intercooler coolant cooled |
| Transmission | |
|---|---|
| Clutch Type | Dual |
Page is loading…
Please wait
Page is loading…
Please wait
| Engine | |
|---|---|
| Horsepower (HP) | 58 HP |
| Engine Capacity (cc) | 2700 cc |
| Engine RPM | 1790 RPM |
| Cylinder | 3 |
| Air Filter | Dry type |
| Cooling Type | Intercooler coolant cooled |
| Transmission | |
|---|---|
| Clutch Type | Dual |
| Transmission Type | Comfirmesh |
|---|
| Forward Speed | 35.8 kmph |
|---|
| Reverse Speed | NA |
|---|
| Forward Gears | 8 |
|---|
| Reverse Gears | 2 |
|---|
| Brakes | |
|---|---|
| Brake Type | Oil Immersed |
| Turning Radius (Brake) | 3250 mm |
| Steering | |
|---|---|
| Steering Type | Power Steering |
| Steering Adjustment | NO |
| PTO Power | |
|---|---|
| PTO Type | 6 Spline |
| PTO RPM | 540, Reverse |
| PTO Power (HP) | 49 HP |
| Fuel Tank | |
|---|---|
| Fuel Tank Capacity (L) | 60 liters |
| Dimension & Weight | |
|---|---|
| Weight | 2255 kg |
| Wheelbase | 1980 mm |
| Overall Length | 3745 mm |
| Hydraulics | |
|---|---|
| Lift Capacity | 2050 kg |
| Tyre Size | |
|---|---|
| Front Tyres | 7.5 X 16 |
| Rear Tyres | 16.9 X 28 |
| Drive & Warranty | |
|---|---|
| Drive Type | 2WD / 4WD |
| Warranty | 2000 Hours / 2 year |
