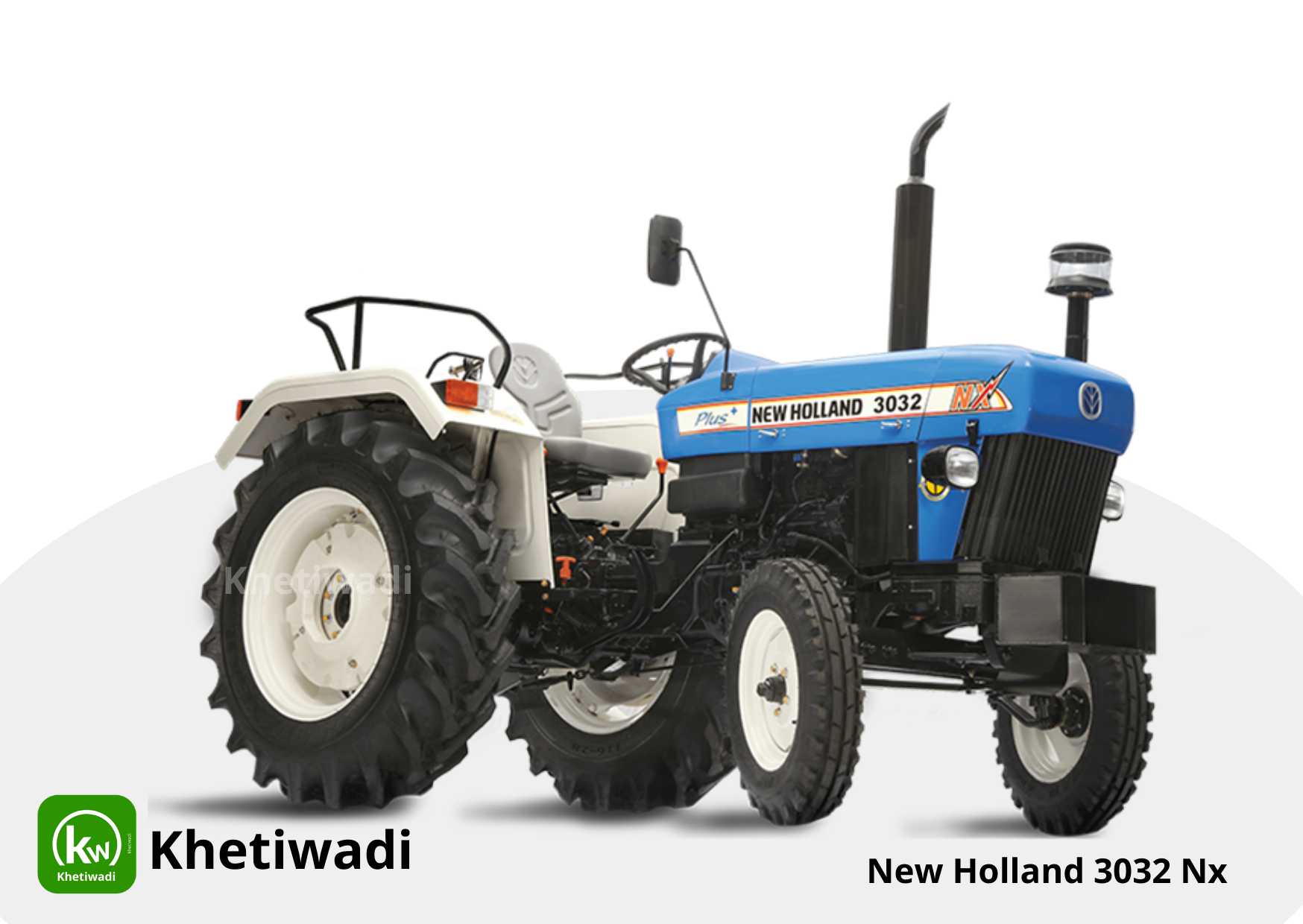

New Holland 3032 Nx – Specifications
| Engine | |
|---|---|
| Horsepower (HP) | 35 HP |
| Engine Capacity (cc) | 2365 cc |
| Engine RPM | 2000 RPM |
| Cylinder | 3 |
| Air Filter | Oil Bath type with pre-cleaner |
| Cooling Type | Water Cooled |
| Transmission | |
|---|---|
| Clutch Type | Single Clutch |
| Engine | |
|---|---|
| Horsepower (HP) | 35 HP |
| Engine Capacity (cc) | 2365 cc |
| Engine RPM | 2000 RPM |
| Cylinder | 3 |
| Air Filter | Oil Bath type with pre-cleaner |
| Cooling Type | Water Cooled |
| Transmission | |
|---|---|
| Clutch Type | Single Clutch |
| Transmission Type | Constant mesh |
|---|
| Forward Speed | 2.92 – 33.06 kmph |
|---|
| Reverse Speed | 3.61 – 13.24 kmph |
|---|
| Forward Gears | 8 |
|---|
| Reverse Gears | 2 |
|---|
| Brakes | |
|---|---|
| Brake Type | Mechanical, Real Oil Immersed Brakes |
| Turning Radius (Brake) | 2810 mm |
| Steering | |
|---|---|
| Steering Type | Mechanical / Power Steering |
| Steering Adjustment | NO |
| PTO Power | |
|---|---|
| PTO Type | 6 Spline |
| PTO RPM | 540 |
| PTO Power (HP) | 34 HP |
| Fuel Tank | |
|---|---|
| Fuel Tank Capacity (L) | 42 litres |
| Dimension & Weight | |
|---|---|
| Weight | 1720 kg |
| Wheelbase | 1930 mm |
| Overall Length | 3290 mm |
| Hydraulics | |
|---|---|
| Lift Capacity | 1500 kg |
| Tyre Size | |
|---|---|
| Front Tyres | 6 X 16 |
| Rear Tyres | 12.4 X 28 / 13.6 X 28 |
| Drive & Warranty | |
|---|---|
| Drive Type | 2WD |
| Warranty | 6000 Hours / 6 year |
