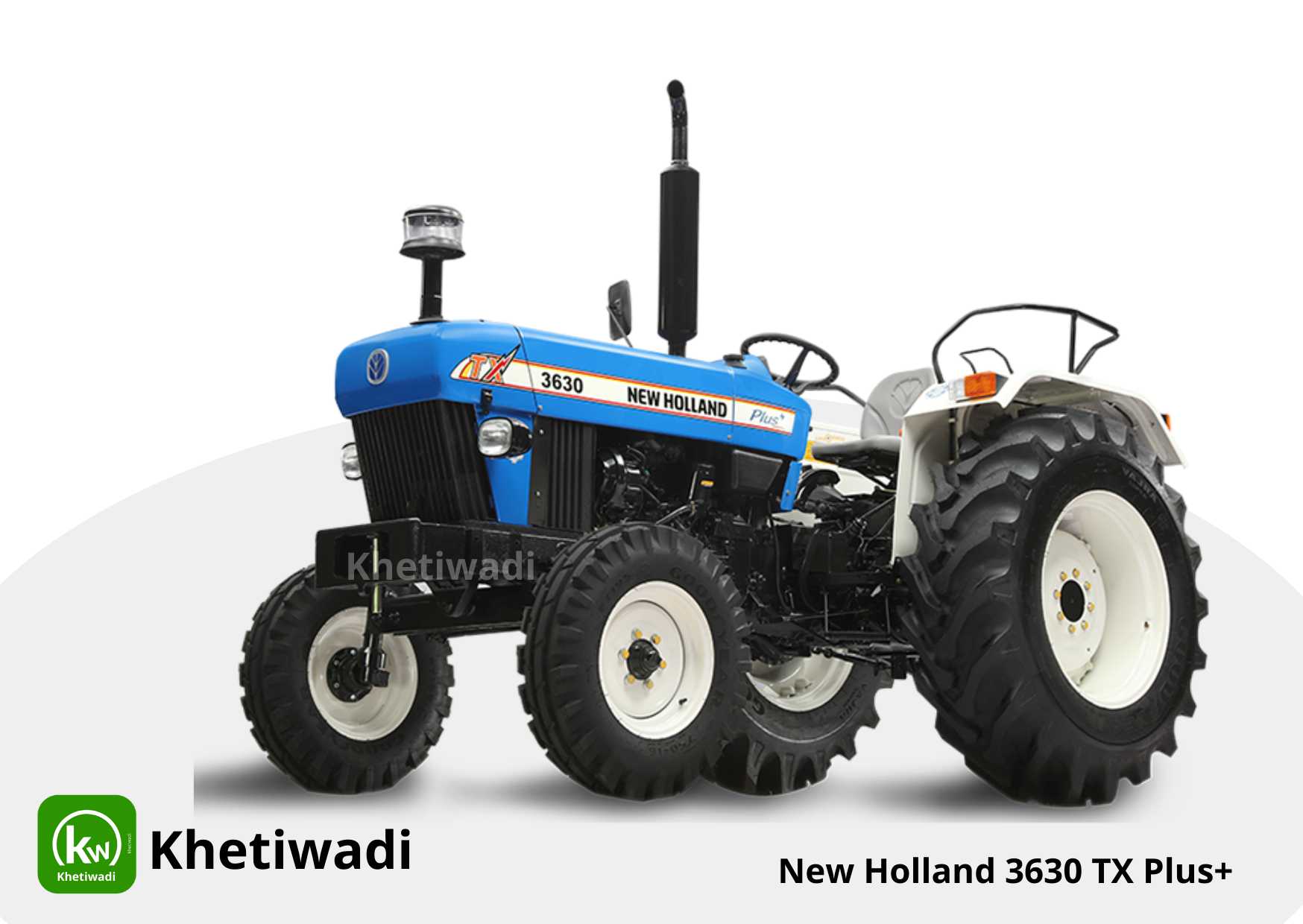

New Holland 3630 TX Plus+ – Specifications
| Engine | |
|---|---|
| Horsepower (HP) | 55 HP |
| Engine Capacity (cc) | NA |
| Engine RPM | 2300 RPM |
| Cylinder | 3 |
| Air Filter | Dry type |
| Cooling Type | Water Cooled |
| Transmission | |
|---|---|
| Clutch Type | Dual Clutch with Independent PTO Lever |
| Engine | |
|---|---|
| Horsepower (HP) | 55 HP |
| Engine Capacity (cc) | NA |
| Engine RPM | 2300 RPM |
| Cylinder | 3 |
| Air Filter | Dry type |
| Cooling Type | Water Cooled |
| Transmission | |
|---|---|
| Clutch Type | Dual Clutch with Independent PTO Lever |
| Transmission Type | Fully Constant mesh / Partial Synchro mesh |
|---|
| Forward Speed | 3.08 – 31.4 kmph |
|---|
| Reverse Speed | 2.8 – 14.98 kmph |
|---|
| Forward Gears | 8 |
|---|
| Reverse Gears | 2 |
|---|
| Brakes | |
|---|---|
| Brake Type | Mechanically Actuated Oil Immersed Multi Disc Brakes |
| Turning Radius (Brake) | 3190 mm |
| Steering | |
|---|---|
| Steering Type | Power Steering |
| Steering Adjustment | NO |
| PTO Power | |
|---|---|
| PTO Type | 6 Spline |
| PTO RPM | 540, Reverse, Ground speed |
| PTO Power (HP) | 47 HP |
| Fuel Tank | |
|---|---|
| Fuel Tank Capacity (L) | 60 liters |
| Dimension & Weight | |
|---|---|
| Weight | 2060 kg |
| Wheelbase | 2045 mm |
| Overall Length | NA |
| Hydraulics | |
|---|---|
| Lift Capacity | 1701 / 2000 kg |
| Tyre Size | |
|---|---|
| Front Tyres | 7.5 X 16 / 9.5 X 24 |
| Rear Tyres | 14.9 X 28 / 16.9 X 28 |
| Drive & Warranty | |
|---|---|
| Drive Type | 2WD / 4WD |
| Warranty | 6000 Hours / 6 year |
