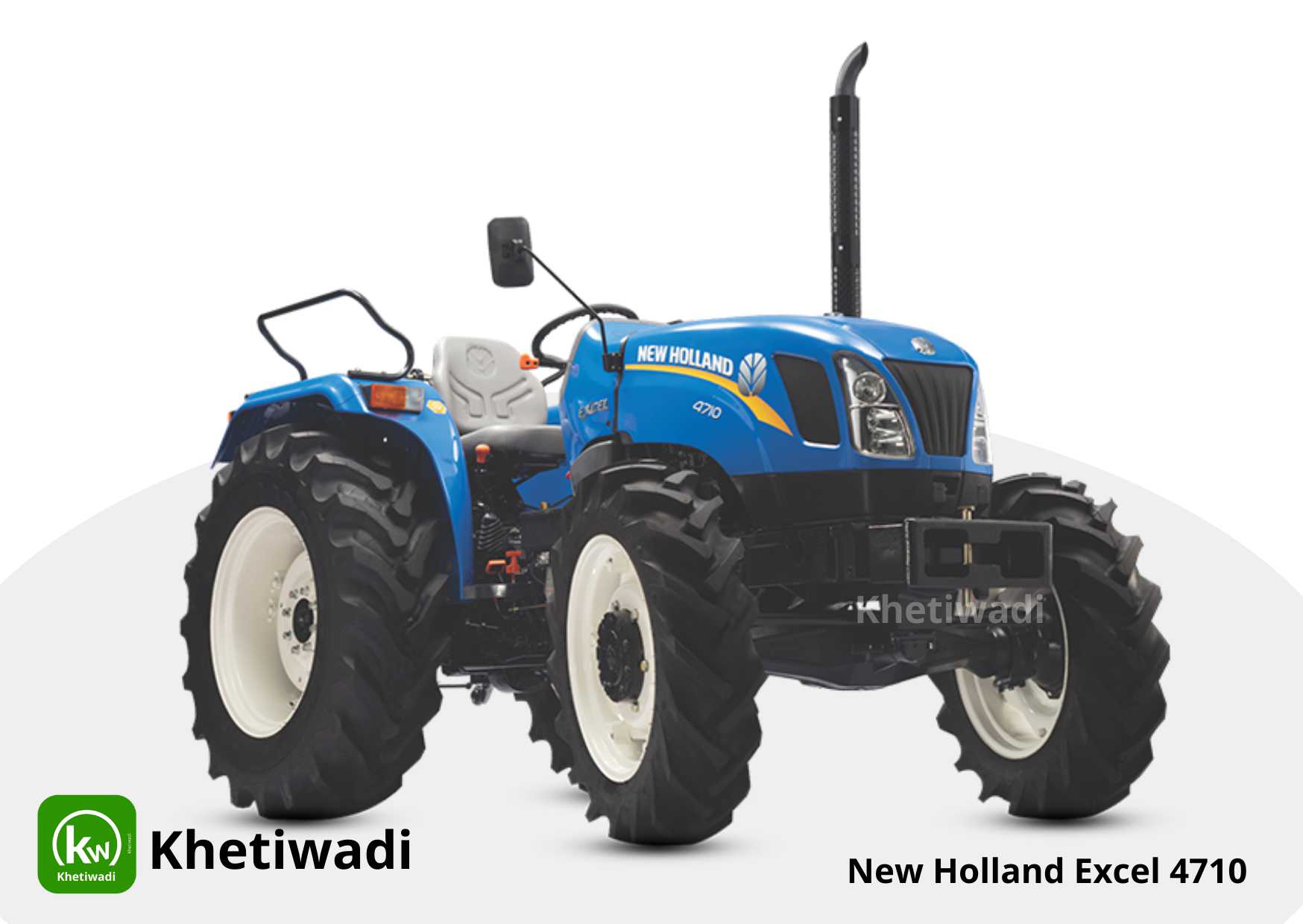

New Holland Excel 4710 – Specifications
| Engine | |
|---|---|
| Horsepower (HP) | 47 HP |
| Engine Capacity (cc) | 2700 cc |
| Engine RPM | 2250 RPM |
| Cylinder | 3 |
| Air Filter | Oil Bath with pre-cleaner |
| Cooling Type | Water Cooled |
| Transmission | |
|---|---|
| Clutch Type | Single / Dual Clutch |
| Engine | |
|---|---|
| Horsepower (HP) | 47 HP |
| Engine Capacity (cc) | 2700 cc |
| Engine RPM | 2250 RPM |
| Cylinder | 3 |
| Air Filter | Oil Bath with pre-cleaner |
| Cooling Type | Water Cooled |
| Transmission | |
|---|---|
| Clutch Type | Single / Dual Clutch |
| Transmission Type | Fully Constant Mesh / Synchro Shuttle |
|---|
| Forward Speed | 3.0 - 33.24 / 2.93 - 32.52 kmph |
|---|
| Reverse Speed | 3.68 - 10.88 / 3.1 - kmph |
|---|
| Forward Gears | 8 |
|---|
| Reverse Gears | 2 |
|---|
| Brakes | |
|---|---|
| Brake Type | Mechanical, Real Oil Immersed Brakes |
| Turning Radius (Brake) | 2800 mm |
| Steering | |
|---|---|
| Steering Type | Power Steering & Mechanical (Optional) |
| Steering Adjustment | NO |
| PTO Power | |
|---|---|
| PTO Type | 6 Spline |
| PTO RPM | 540, 540E, Ground speed |
| PTO Power (HP) | 43 HP |
| Fuel Tank | |
|---|---|
| Fuel Tank Capacity (L) | 62 liters |
| Dimension & Weight | |
|---|---|
| Weight | 2040 kg |
| Wheelbase | 1955 mm |
| Overall Length | 3400 mm |
| Hydraulics | |
|---|---|
| Lift Capacity | 1800 kg |
| Tyre Size | |
|---|---|
| Front Tyres | 8 X 18 / 8.3 X 24 / 9.5 X 24 / 6 X 16 / 6.5 X 16 |
| Rear Tyres | 13.6 X 28 / 14.9 X 28 |
| Drive & Warranty | |
|---|---|
| Drive Type | 2WD / 4WD |
| Warranty | 6000 Hours / 6 year |
