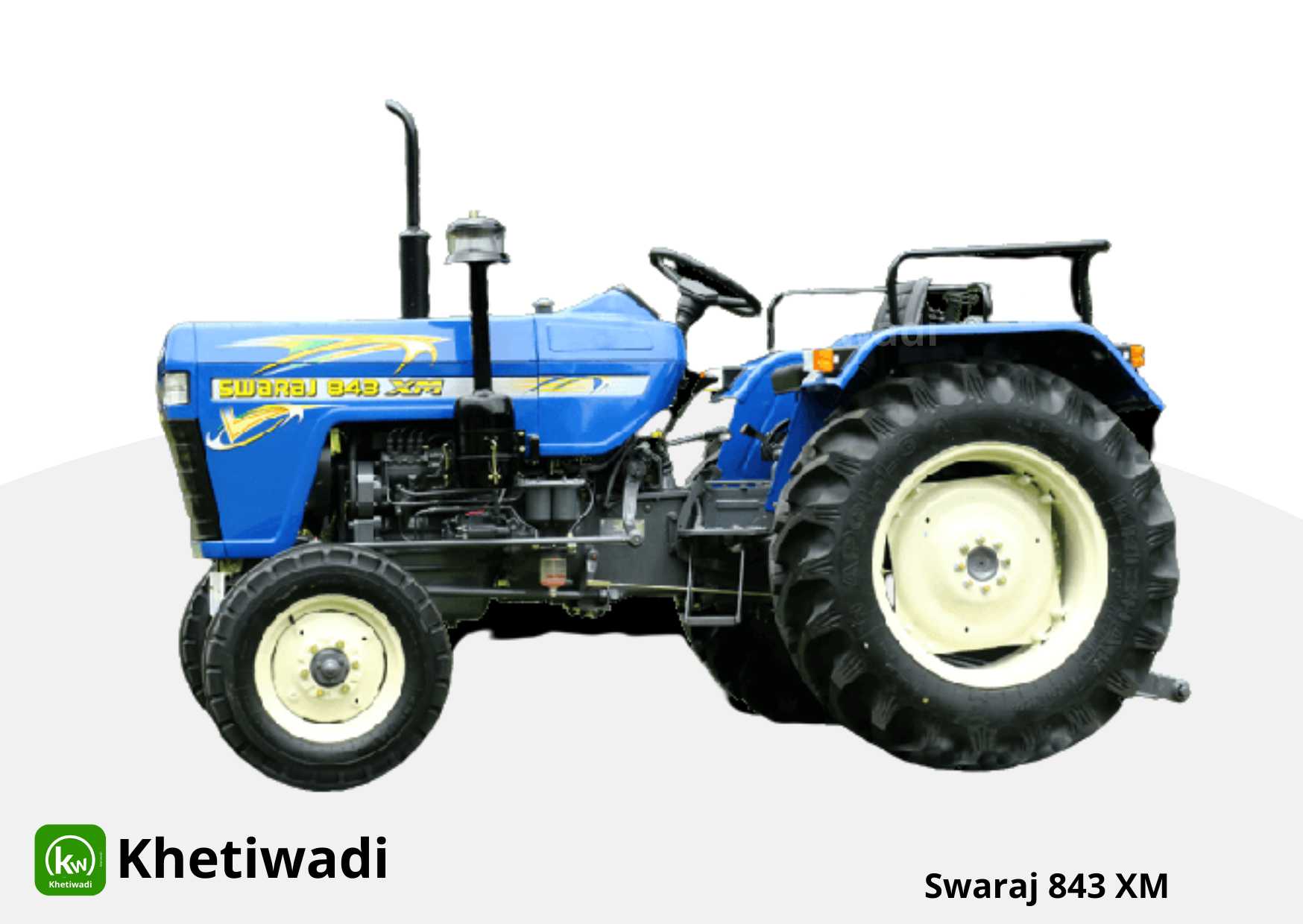

Swaraj 843 XM – Specifications
| Engine | |
|---|---|
| Horsepower (HP) | 43 HP |
| Engine Capacity (cc) | 2730 cc |
| Engine RPM | 1900 RPM |
| Cylinder | 4 |
| Air Filter | 3 Stage oil bath type |
| Cooling Type | Water Cooled |
| Transmission | |
|---|---|
| Clutch Type | Single / Dual |
Page is loading…
Please wait
Page is loading…
Please wait
| Engine | |
|---|---|
| Horsepower (HP) | 43 HP |
| Engine Capacity (cc) | 2730 cc |
| Engine RPM | 1900 RPM |
| Cylinder | 4 |
| Air Filter | 3 Stage oil bath type |
| Cooling Type | Water Cooled |
| Transmission | |
|---|---|
| Clutch Type | Single / Dual |
| Transmission Type | Constant Mesh |
|---|
| Forward Speed | 2.3 – 29.3 kmph |
|---|
| Reverse Speed | 2.7 – 10.6 kmph |
|---|
| Forward Gears | 8 |
|---|
| Reverse Gears | 2 |
|---|
| Brakes | |
|---|---|
| Brake Type | Oil Immersed |
| Turning Radius (Brake) | NA |
| Steering | |
|---|---|
| Steering Type | Mechanical Steering |
| Steering Adjustment | NO |
| PTO Power | |
|---|---|
| PTO Type | 6 Spline |
| PTO RPM | 540 |
| PTO Power (HP) | 37 HP |
| Fuel Tank | |
|---|---|
| Fuel Tank Capacity (L) | 60 liters |
| Dimension & Weight | |
|---|---|
| Weight | 1830 kg |
| Wheelbase | 2055 mm |
| Overall Length | 3460 mm |
| Hydraulics | |
|---|---|
| Lift Capacity | 1000 kg |
| Tyre Size | |
|---|---|
| Front Tyres | 6 X 16 |
| Rear Tyres | 12.4 X 28 / 13.6 X 28 |
| Drive & Warranty | |
|---|---|
| Drive Type | 2WD |
| Warranty | 2000 Hours / 2 year |
