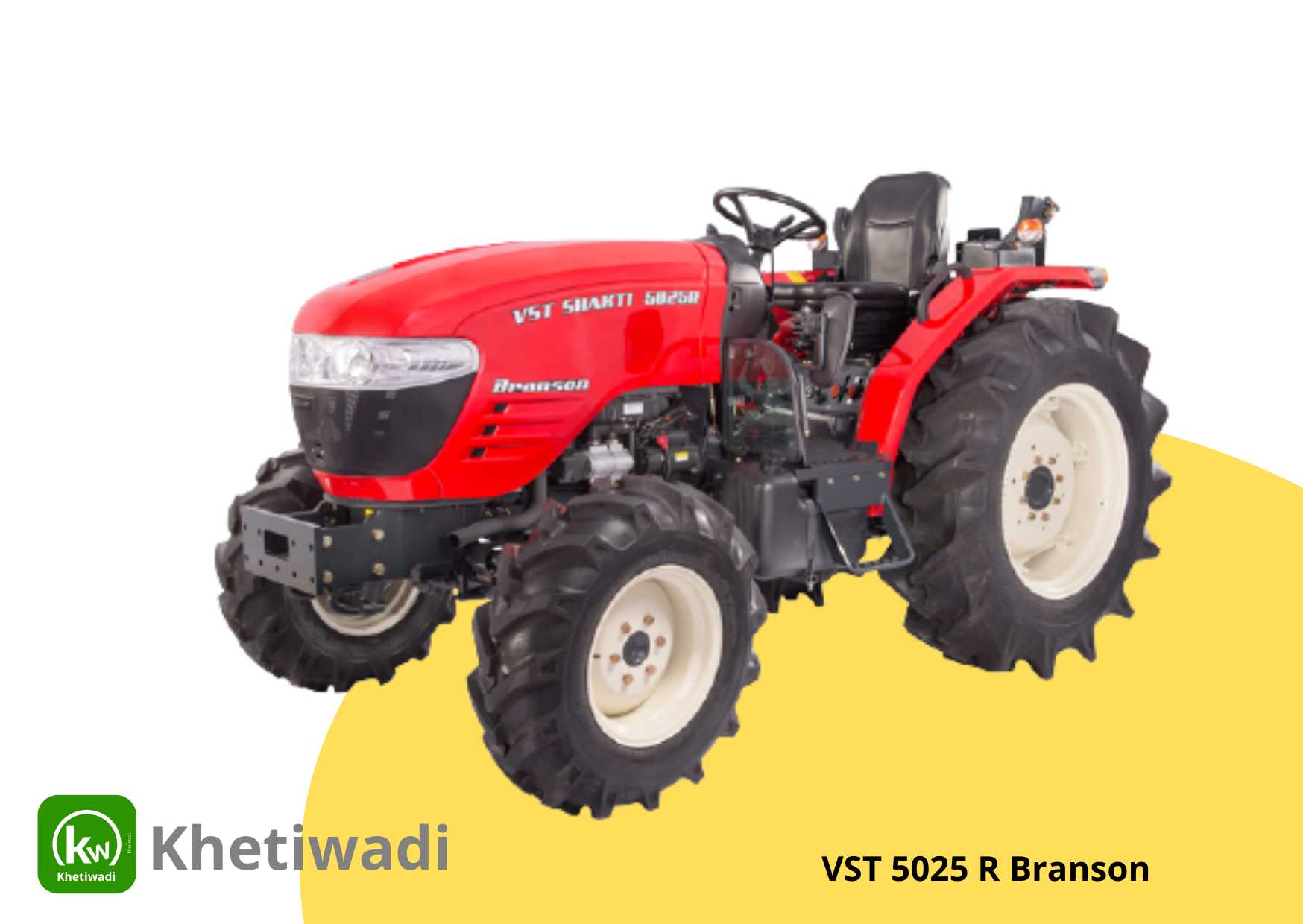

VST 5025 R Branson – Specifications
| Engine | |
|---|---|
| Horsepower (HP) | 47 HP |
| Engine Capacity (cc) | 2286 cc |
| Engine RPM | 2600 RPM |
| Cylinder | 4 |
| Air Filter | Dry Element |
| Cooling Type | Water Cooled |
| Transmission | |
|---|---|
| Clutch Type | Single Friction Plate |
| Engine | |
|---|---|
| Horsepower (HP) | 47 HP |
| Engine Capacity (cc) | 2286 cc |
| Engine RPM | 2600 RPM |
| Cylinder | 4 |
| Air Filter | Dry Element |
| Cooling Type | Water Cooled |
| Transmission | |
|---|---|
| Clutch Type | Single Friction Plate |
| Transmission Type | Synchromesh |
|---|
| Forward Speed | 2.6 – 30.25 kmph |
|---|
| Reverse Speed | 1.89 – 8.3 kmph |
|---|
| Forward Gears | 12 |
|---|
| Reverse Gears | 12 |
|---|
| Brakes | |
|---|---|
| Brake Type | Wet type |
| Turning Radius (Brake) | 2600 mm |
| Steering | |
|---|---|
| Steering Type | Mechanical Steering |
| Steering Adjustment | NO |
| PTO Power | |
|---|---|
| PTO Type | 6 Spline |
| PTO RPM | 584, 791 |
| PTO Power (HP) | 42 HP |
| Fuel Tank | |
|---|---|
| Fuel Tank Capacity (L) | 45 liters |
| Dimension & Weight | |
|---|---|
| Weight | 900 kg |
| Wheelbase | 1420 mm |
| Overall Length | 2360 mm |
| Hydraulics | |
|---|---|
| Lift Capacity | 1650 kg |
| Tyre Size | |
|---|---|
| Front Tyres | 6 X 12 |
| Rear Tyres | 8.3 X 20 |
| Drive & Warranty | |
|---|---|
| Drive Type | 4WD |
| Warranty | NA |
