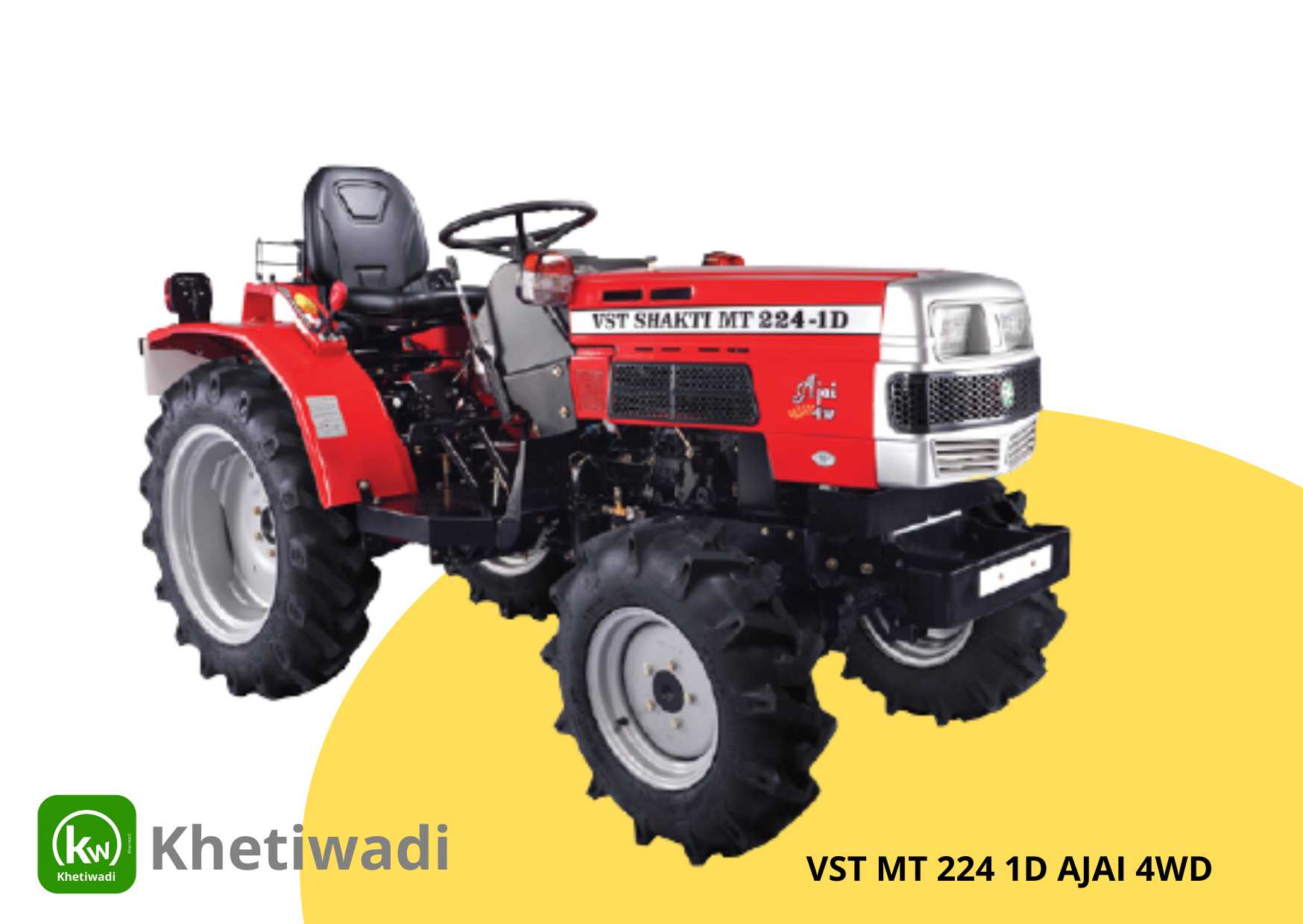

VST MT 224 1D AJAI 4WD – Specifications
| Engine | |
|---|---|
| Horsepower (HP) | 22 HP |
| Engine Capacity (cc) | 980 cc |
| Engine RPM | 3000 RPM |
| Cylinder | 3 |
| Air Filter | Dry type |
| Cooling Type | Water Cooled Radiator with compensatory tank |
| Transmission | |
|---|---|
| Clutch Type | Single Clutch |
| Engine | |
|---|---|
| Horsepower (HP) | 22 HP |
| Engine Capacity (cc) | 980 cc |
| Engine RPM | 3000 RPM |
| Cylinder | 3 |
| Air Filter | Dry type |
| Cooling Type | Water Cooled Radiator with compensatory tank |
| Transmission | |
|---|---|
| Clutch Type | Single Clutch |
| Transmission Type | Sliding Mesh |
|---|
| Forward Speed | 1.37 - 19.3 kmph |
|---|
| Reverse Speed | 1.76 - 7.72 kmph |
|---|
| Forward Gears | 6 |
|---|
| Reverse Gears | 2 |
|---|
| Brakes | |
|---|---|
| Brake Type | Oil Immersed Brakes |
| Turning Radius (Brake) | 2300 mm |
| Steering | |
|---|---|
| Steering Type | Manual Steering |
| Steering Adjustment | NO |
| PTO Power | |
|---|---|
| PTO Type | 6 Spline |
| PTO RPM | 692, 1021 |
| PTO Power (HP) | 19 HP |
| Fuel Tank | |
|---|---|
| Fuel Tank Capacity (L) | 18 liters |
| Dimension & Weight | |
|---|---|
| Weight | 740 kg |
| Wheelbase | 1420 mm |
| Overall Length | 2565 mm |
| Hydraulics | |
|---|---|
| Lift Capacity | 750 kg |
| Tyre Size | |
|---|---|
| Front Tyres | 6 X 12 |
| Rear Tyres | 8.3 X 20 |
| Drive & Warranty | |
|---|---|
| Drive Type | 4WD |
| Warranty | NA |
